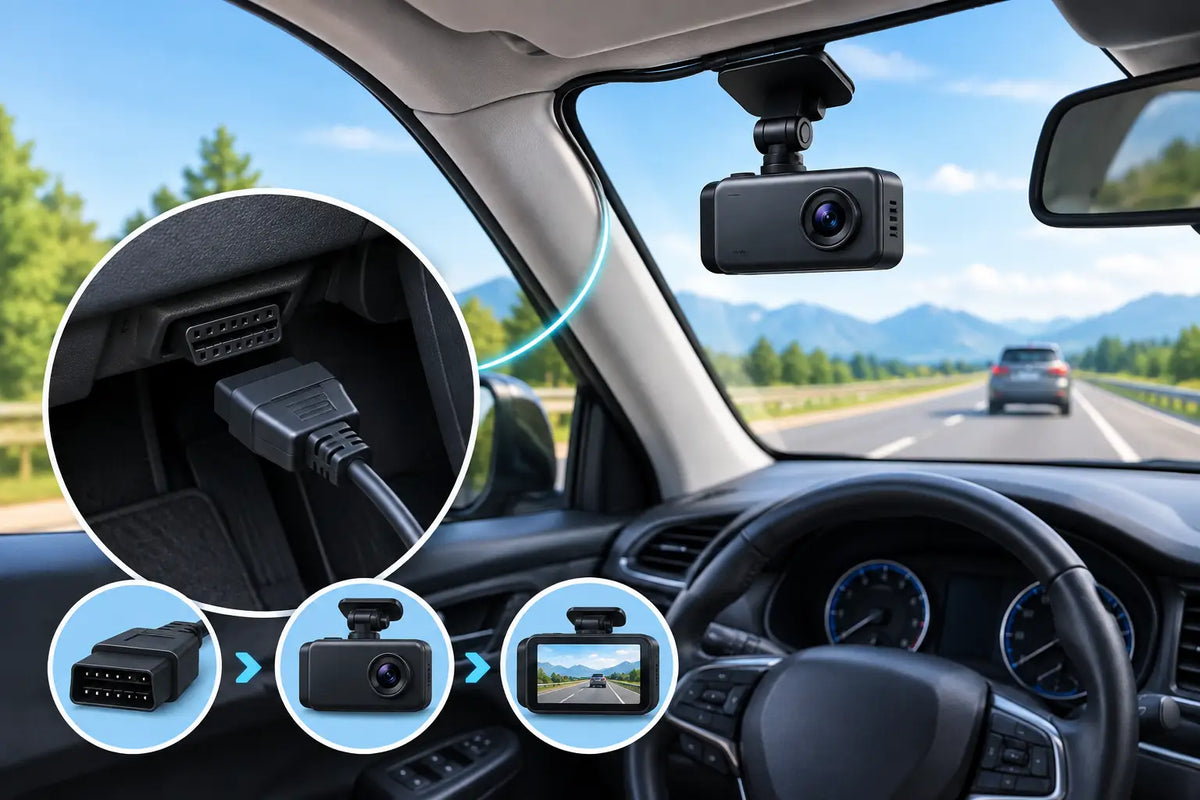

A dangling charging cable is not the upgrade your car deserves. An OBD power connection gives your dash cam a cleaner, more factory-style setup while enabling the features that matter after you park. This OBD dash cam installation guide shows you how to route power safely, activate parking protection, and make sure your camera is recording when you need it most.

Why Use an OBD Power Cable for a Dash Cam?

Your vehicle’s OBD-II port is usually located beneath the dashboard, close to the steering wheel. An OBD dash cam power cable plugs into that diagnostic port and supplies power without cutting, tapping, or hardwiring into factory wiring. For drivers who want a neat install but do not want to remove interior panels or visit an installer, it is a smart middle ground.

The biggest advantage is parking surveillance. A standard 12V outlet may switch off as soon as the ignition turns off. An OBD cable designed for dash cams can provide constant power, allowing a compatible camera to watch for motion or impacts while your vehicle is parked. That means more protection against hit-and-runs, door dings, and suspicious activity around your car.

There is a trade-off. The OBD port is also used for vehicle diagnostics. If you regularly use an insurance tracker, fleet device, scan tool, or performance monitor, confirm that the port will remain available. An OBD splitter can help, but only use one designed for your vehicle and avoid overcrowding the area around the driver’s footwell.

What to Check Before You Start

First, confirm that your vehicle has an OBD-II port. Most cars and light trucks sold in the U.S. from 1996 onward have one. Look below the steering column, around the lower dash panel, or near the fuse box. It is a 16-pin trapezoid-shaped connector, not the smaller USB-style port found in newer vehicles.

Check your dash cam’s power input before ordering or connecting anything. Many cameras use USB-C, micro-USB, or a dedicated mini-USB connector, and the voltage requirement must match the cable. Never force a cable into the camera or assume every OBD adapter is interchangeable.

Choose an OBD power cable with low-voltage protection. This feature monitors your car battery and cuts power to the dash cam when voltage drops below a set level. It is the difference between useful 24-hour parking monitoring and a camera that slowly drains your battery during a long weekend away.

Also decide where the camera will sit before routing cable. A front dash cam works best high on the windshield, usually behind or beside the rearview mirror, where it has a clear view of the road without blocking your sightline. Check local windshield-mounting rules and keep the camera outside the driver’s primary field of vision.

For dual-channel or triple-channel systems, plan the rear-camera cable route as well. Measure the path mentally from the front camera, across the headliner, down the rear pillar, and toward the rear glass. If you drive an SUV, hatchback, or pickup, leave enough slack near any moving tailgate or hatch.

OBD Dash Cam Installation Guide: The Clean Setup

Mount the front camera first

Clean the glass with an alcohol wipe and let it dry fully. Attach the dash cam mount high on the windshield, then angle the lens so the horizon sits around the middle of the frame. You want to capture lanes, license plates, traffic lights, and the road ahead, not half the dashboard or a sky-heavy view.

If your camera includes a cabin-facing lens, adjust it now. Rideshare drivers should frame both front seats and the rear seating area without aiming directly at passengers’ faces more than necessary. Respect local privacy rules and tell passengers when recording is required in your area or for your work.

Connect the power cable to the camera

Plug the correct end of the OBD cable into the dash cam. Do this before hiding the wire so you can confirm cable length and connector fit. Keep the cable relaxed at the camera end. A tight bend can pull on the mount or damage the connector over time.

Route the wire along the headliner

Tuck the cable gently into the gap between the windshield and headliner. Use the included trim tool if available. Do not use a screwdriver, knife, or other sharp metal tool that can damage trim, wiring, or the headliner.

Run the wire toward the passenger side or driver side based on the shortest safe route to the OBD port. The passenger-side route is often easier because it can keep wiring away from the steering column, but every vehicle is different. Choose the route that stays clear of pedals, moving parts, and airbag zones.

Keep the cable away from airbags

This is the step people rush, and it is the one that matters most. Side curtain airbags are commonly located behind the A-pillar trim and along the roofline. Do not route the cable across an airbag cover or directly in front of the airbag deployment path.

Instead, guide the cable behind the weather stripping where appropriate, or alongside factory wiring only when there is a clearly safe channel. If you must remove A-pillar trim and are unsure where the airbag sits, stop and use a professional installer. A clean-looking install is never worth interfering with a safety system.

Bring the cable down to the OBD-II port

Continue routing the wire behind lower dash trim, using existing gaps where possible. Leave a small service loop near the port so the connector is not under tension. Secure loose wire with adhesive clips or fabric tape rated for automotive interiors.

Keep everything above the pedals and away from the brake, accelerator, clutch, steering linkage, and hood-release mechanism. Sit in the driver’s seat and operate each pedal fully before plugging in the final connection. Nothing should snag, shift, or hang into your footwell.

Plug in and confirm power

Insert the OBD connector firmly, with the correct orientation. It should seat securely without excessive force. Start the vehicle and check that the camera powers on, begins recording, and displays a memory-card status without errors.

A feature-rich camera such as a BLEAT dash cam may show Wi-Fi, GPS, parking-mode, and recording indicators in the app or on-screen menu. Confirm the camera recognizes external power before you finish hiding the last section of cable.

Set Up Parking Mode Without Risking Your Battery

Parking mode is only useful when it matches your driving habits. Open the dash cam settings and choose the available mode, such as time-lapse recording, motion detection, impact detection, or buffered recording. Buffered parking mode can save footage from moments before an impact, but it generally uses more power than a simple impact-triggered mode.

Set the OBD cable’s voltage cutoff if it has an adjustable switch. The best setting depends on your battery condition, climate, vehicle usage, and how long the car sits. Drivers who commute daily can often use a lower cutoff than drivers who leave a vehicle parked for several days. If your battery is older or your region has very cold winters, choose a more conservative cutoff.

After your first overnight park, check the camera’s saved clips and verify that the vehicle starts normally. If the car cranks slowly or the dash cam records far more clips than expected, raise the cutoff setting or use a less power-intensive parking mode.

Test the Recording Before You Rely on It

Take a short drive in daylight, then review the footage on the camera or app. Check that license plates are readable at normal following distance, the image is level, and audio is set the way you prefer. If GPS is enabled, verify that the location data appears correctly. Some drivers choose to disable speed display while retaining GPS data, depending on personal privacy preferences.

Test night footage too. Streetlights, headlights, reflective signs, and windshield glare can reveal mounting problems that are invisible during the day. Clean both sides of the windshield around the camera area, and avoid placing reflective dashboard accessories directly below the lens.

If you installed a rear camera, inspect that recording separately. Rear footage should not be blocked by window tint, defroster lines, cargo, or a constantly dirty rear glass. For exterior rear cameras, make sure the cable connection is weather-protected and the lens is firmly mounted.

Common OBD Dash Cam Problems and Quick Fixes

If the camera does not power on, first check the cable connection at both ends and confirm the OBD port is not blocked by an adapter. Test the camera with its standard power cable if you have one. This helps identify whether the issue is the camera, the OBD cable, or the vehicle port.

If parking mode does not activate, inspect the camera’s parking-mode settings and give the system time to recognize that the ignition has turned off. Some vehicles keep accessory power active briefly after locking. If the camera shuts down immediately, the OBD cable may be configured for switched power only or may not support constant-power parking monitoring.

If the camera reboots, freezes, or misses recordings, format the memory card in the dash cam menu and use a high-endurance card designed for continuous recording. A low-quality card is one of the most common reasons a great camera performs poorly.

Your dash cam should disappear into the background until a close call, a parking incident, or a memorable road trip proves why it is there. Route the cable carefully, test the footage, protect the battery, and let your setup do its job every time you turn the key.
